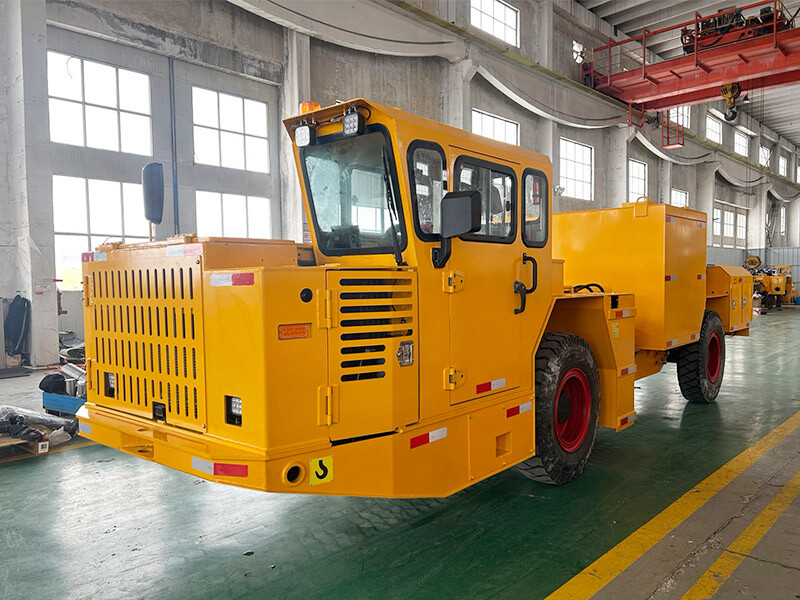

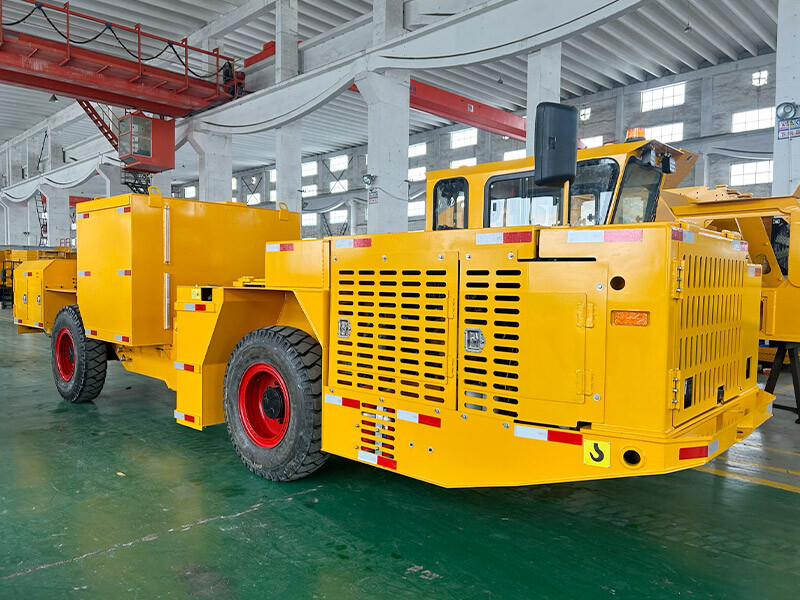

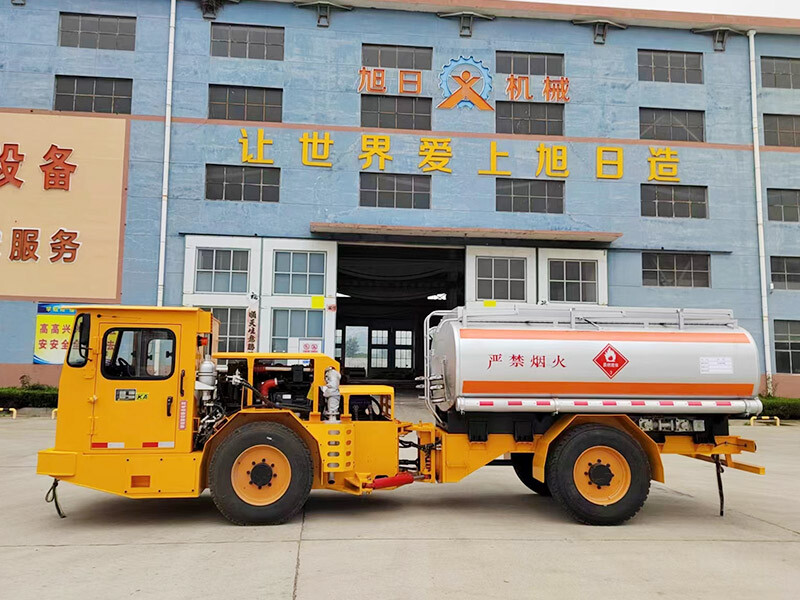

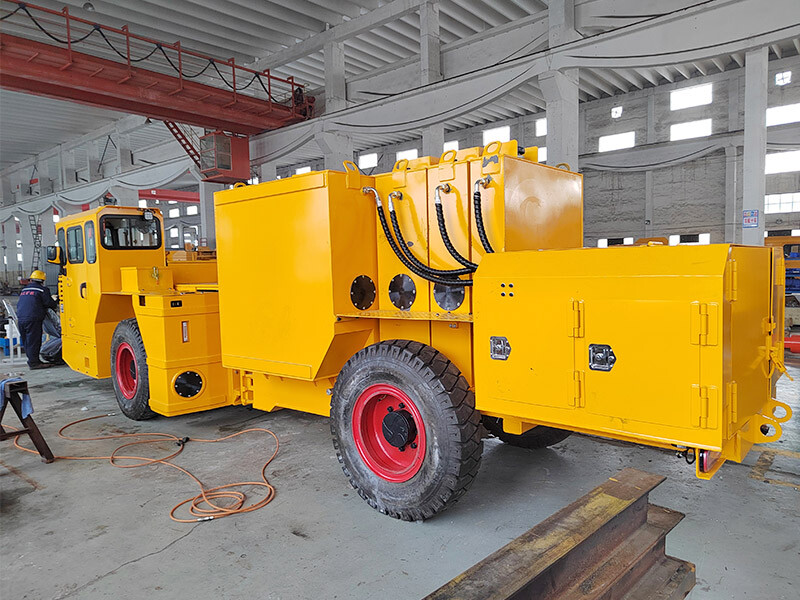

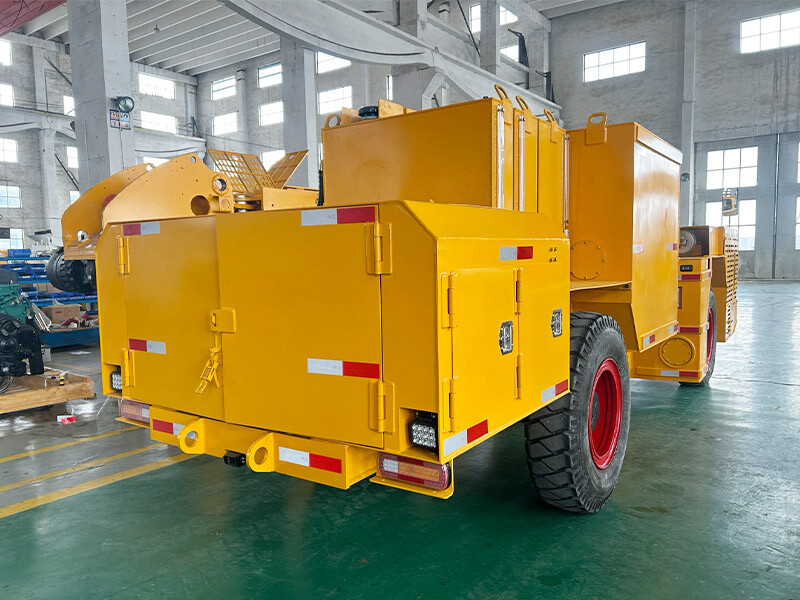

Oil-tank Transporter CY-5000
Introduction
Contact Us

Standard Chassis

Diesel Engine

Deutz TCD4.1 (115KW)

Transmission and Converter

Manufacturer:    USA DANA

Model：     DANA R32000

Drive axle (With spring brake)

Manufacturer:    USA DANA

Type:                  Multi-discs wet hydraulic service brake, spring brake+hydraulic release; spring brake+hydraulic release parking brake;

модель                DANA  113

Hydraulic system

Type:       steering. Service brake, safety brake system

Remark: PERMCO gear pump; main hydraulic components from MICO or Rexroth Bosch

Exhaust purifier:  Oxide catalyst system+ silencer

Central Articulation pin shaft

Material      DC12(40Cr)φ60×146

Main Components and Build-up List

Product parameters

S/NName of ComponentsModelSupplier
2.1Transmission: Mainly imported brands

2.1.1Diesel engineTCD4.1 115KWDeutz TCD4.1   115KW
2.1.2Transmission/ConverterR32000+C271USA DANA
2.1.3Drive axle (F+R)113USA DANA
2.1.4Transfer shaft——Made in China
2.1.5Exhaust purifier
Made-in-China
2.1.6Silencer
Made-in-China
2.1.7Wheel rim10.0-20Made-in-China
2.18Tyres12.00-20 cut-resistanceMade-in-China
2.2Frame: Made-in-China

2.3Standard fittings: Made-in-China

2.4Hydraulic system

2.4.1Gear pump
Imported
2.4.2Charging valve06－463－230USA MICO
2.4.3Footage valve06－466－210USA MICO
2.4.4Manual brake solenoid valve——Made-in-China
2.4.5Accumulator0.75L
2.4.6Pressure Switch24V 100 barImported
2.4.7Other hydraulic components: Made-in-China

2.5Electric system: engine/converter gauges imported brand, others made-in-China

2.6Other mechanism made in China

2.7Cabin: made in China;
